We integrate quality into design, production and after-sales,
ensuring every dispenser
meets commercial demands.

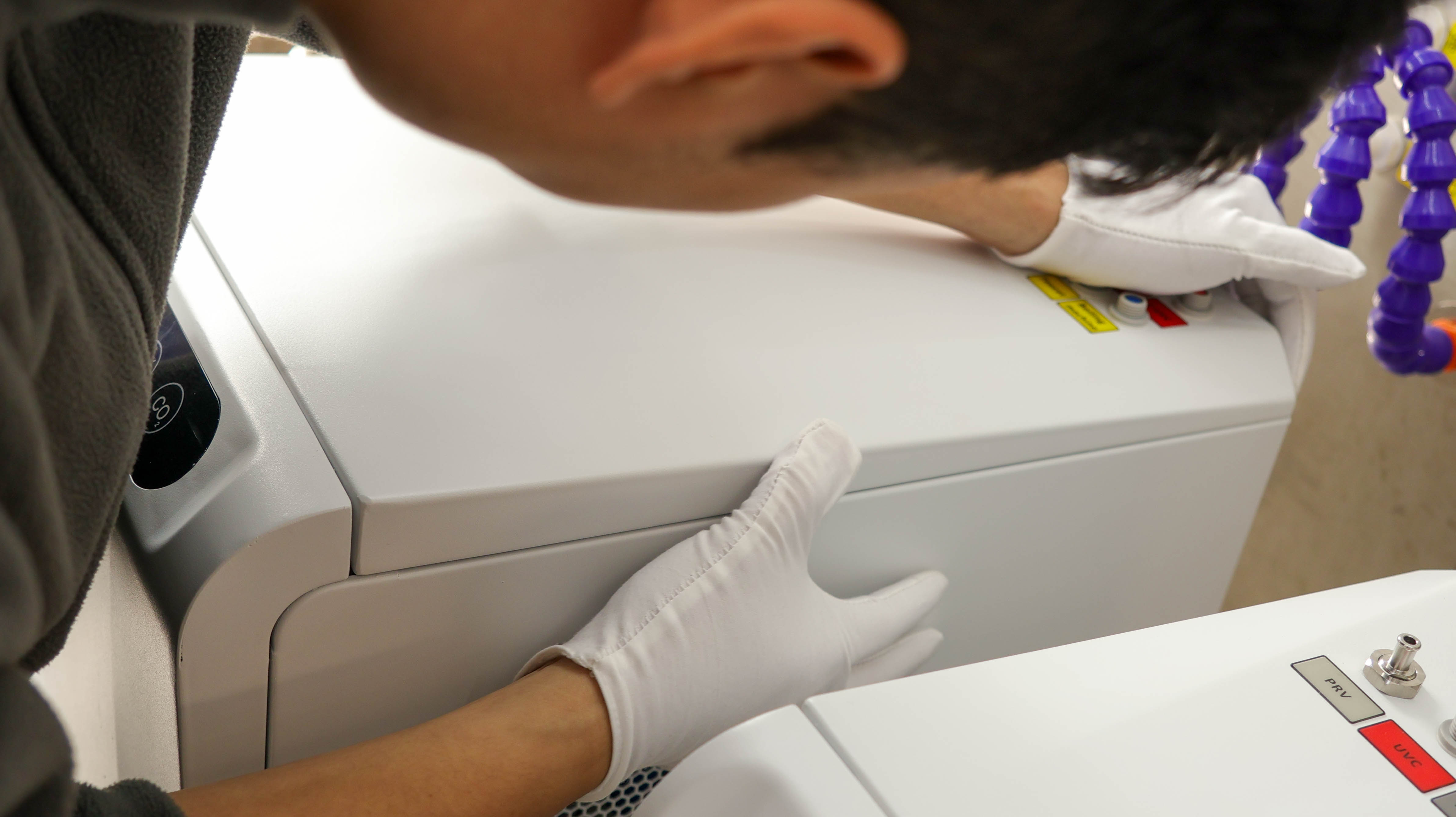

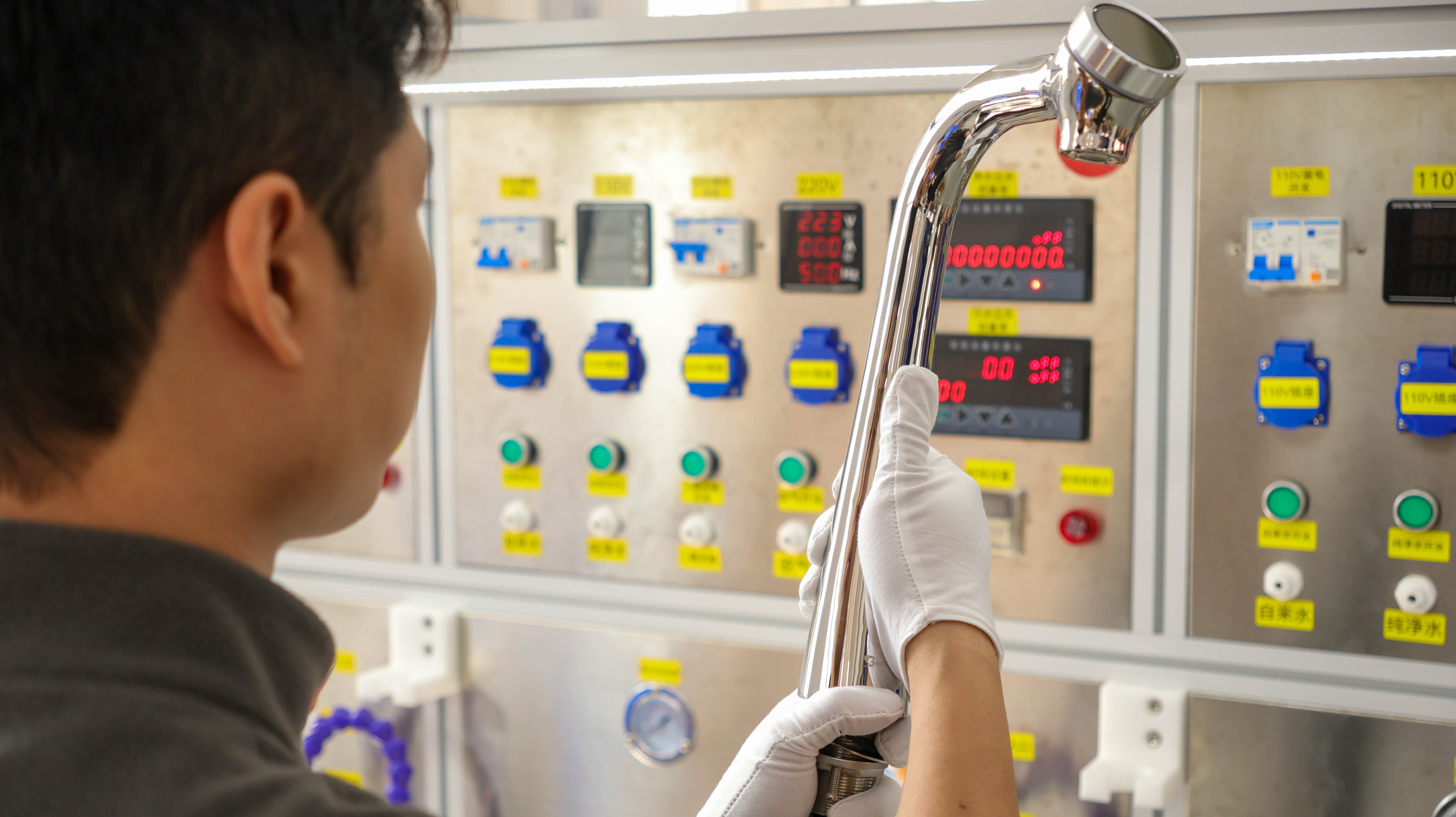

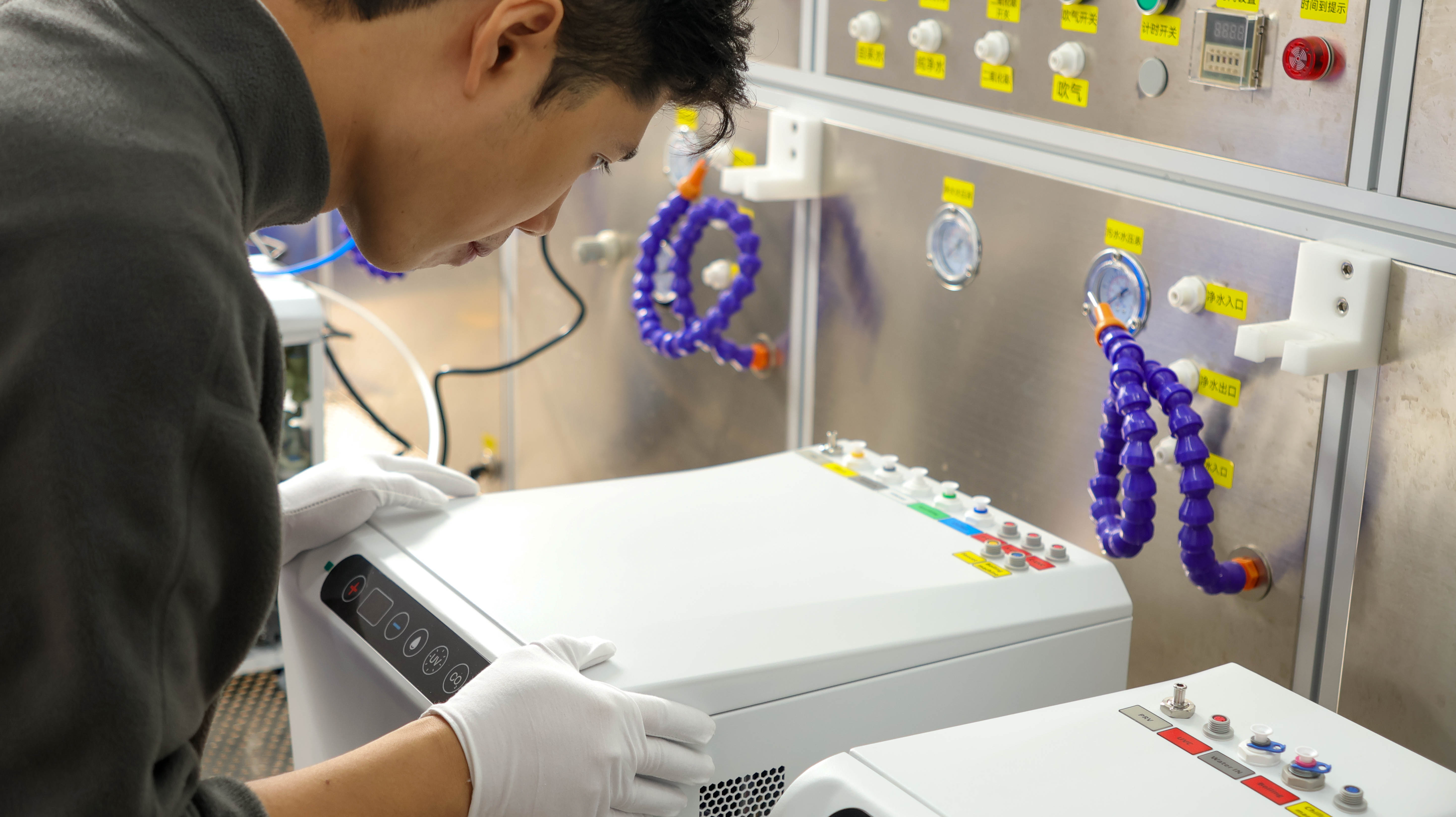

Surface finish is uniform, free of scratches,dents, or color variation
Welds are evenly polished, no burrs or sharp edges
Display, buttons, and faucet surfaces are clean and properly assembled

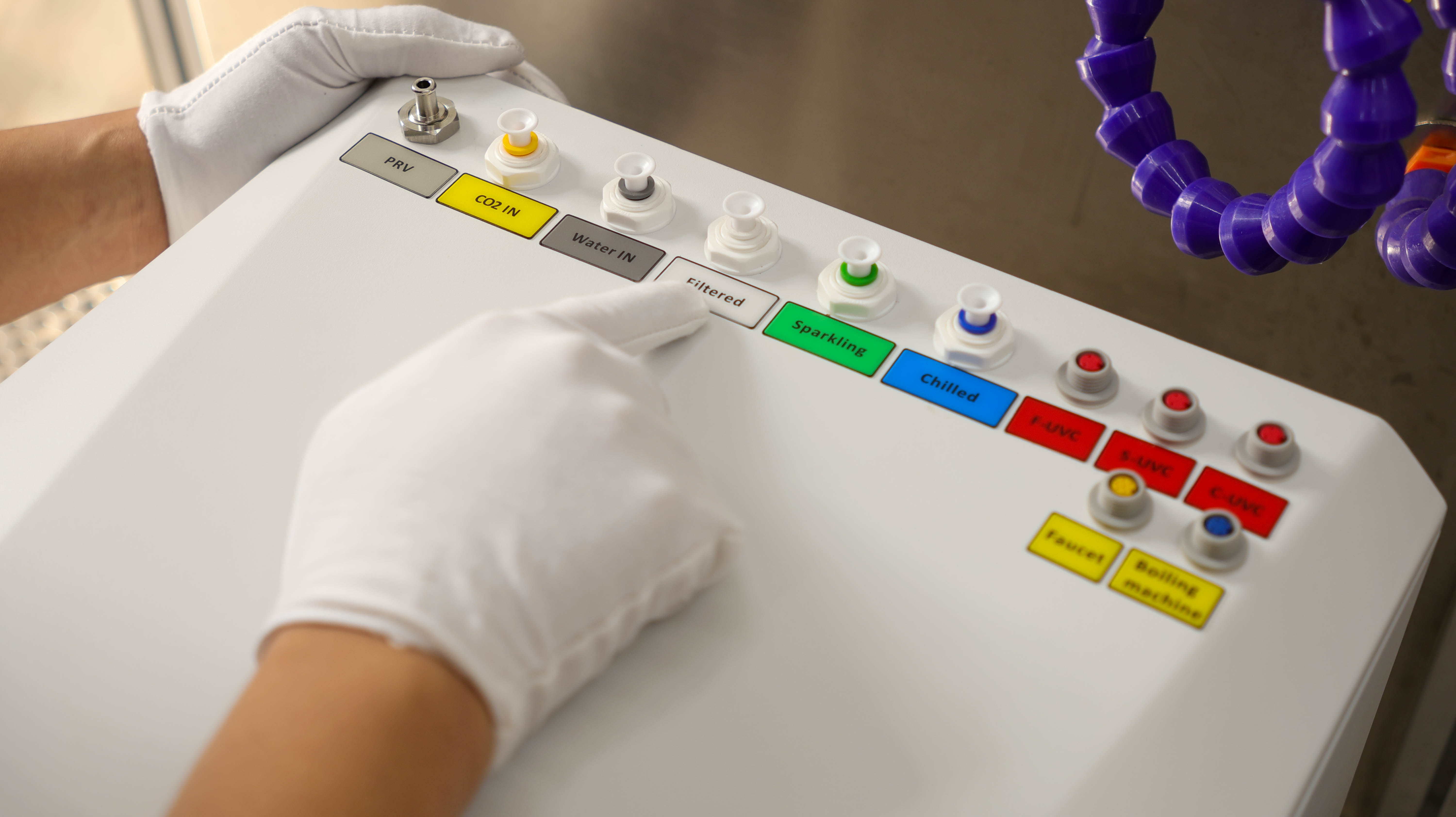

All labels are correctly applied

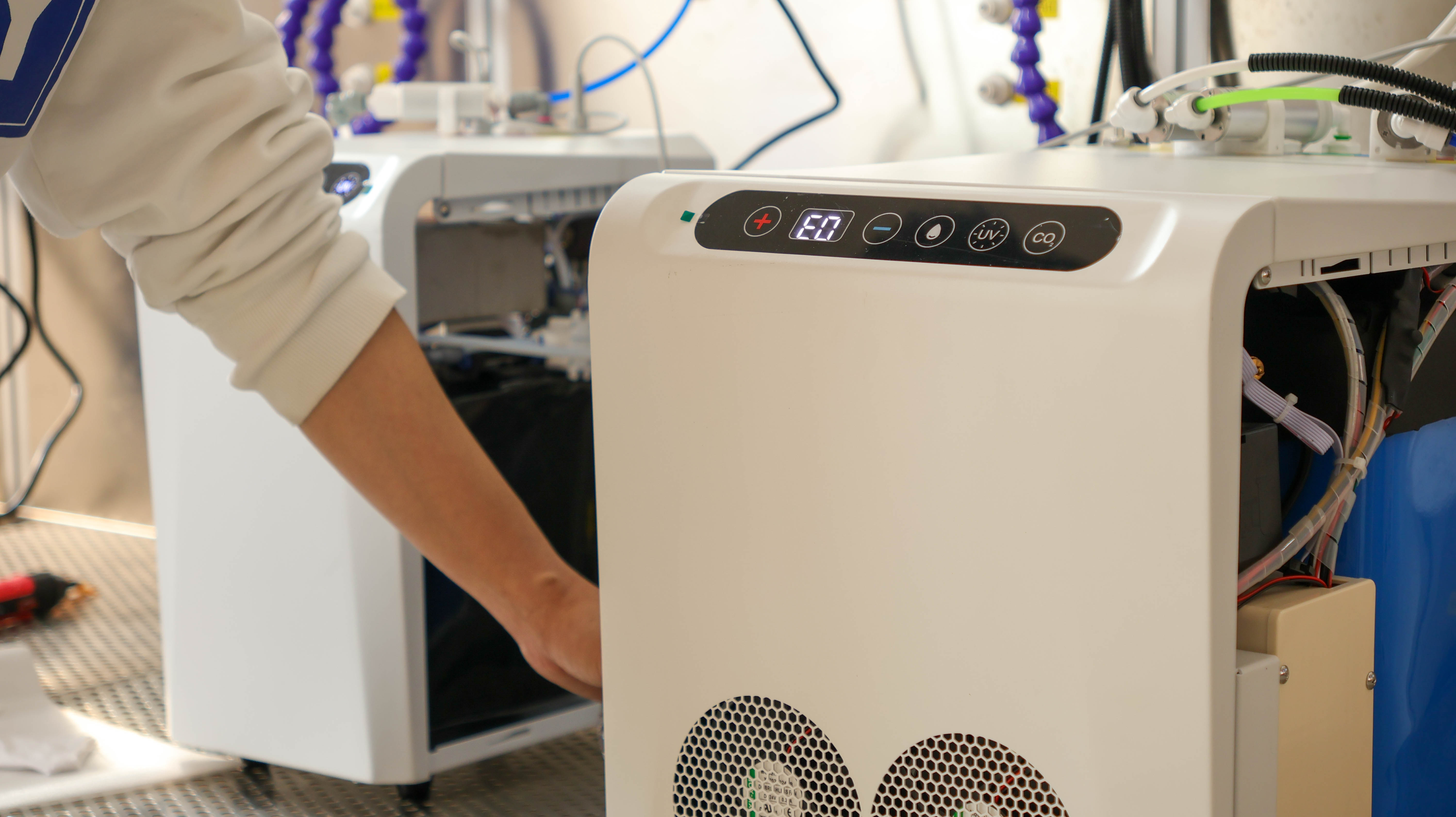

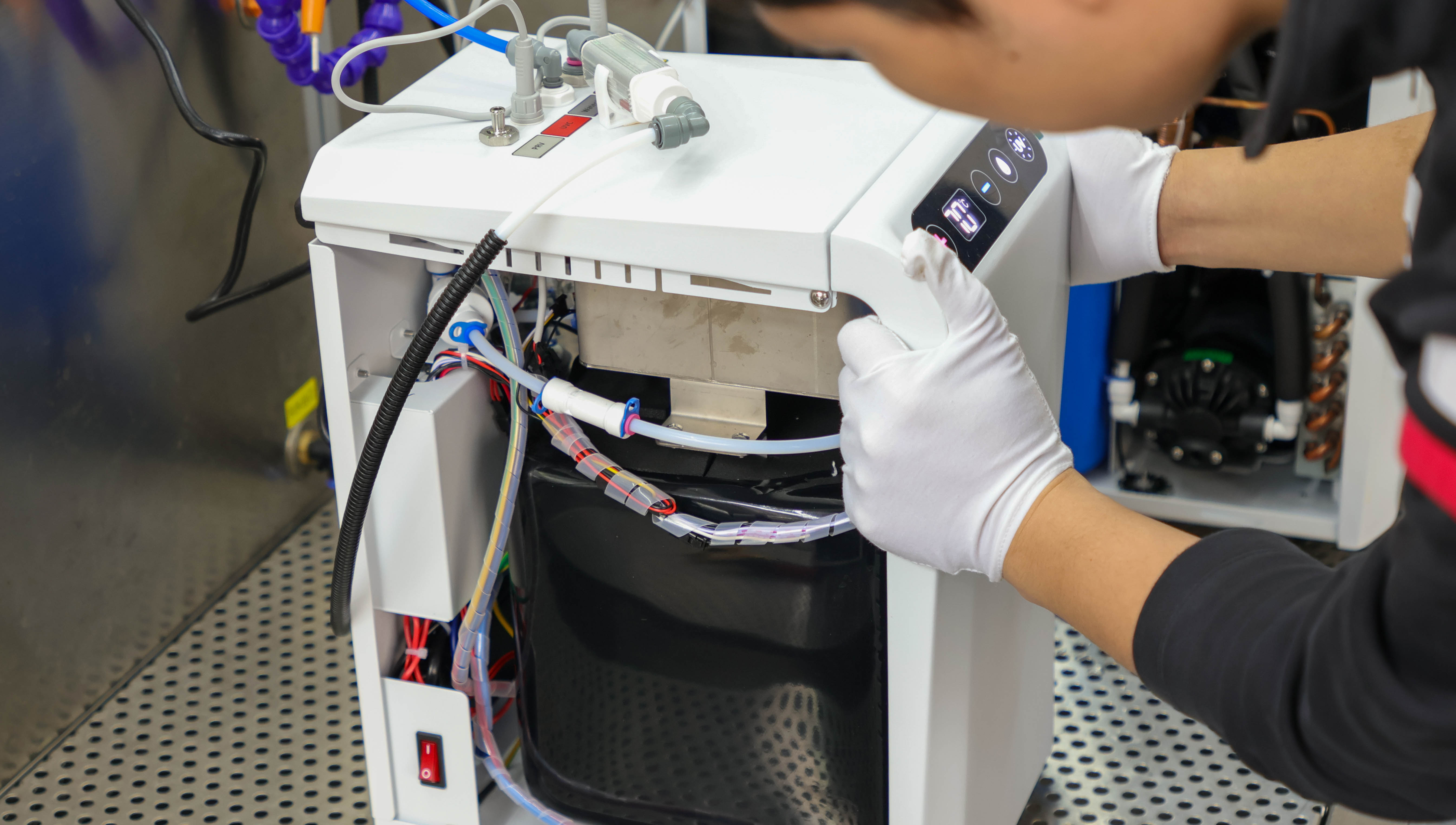

Main PCB communication is functioning normally
Display test

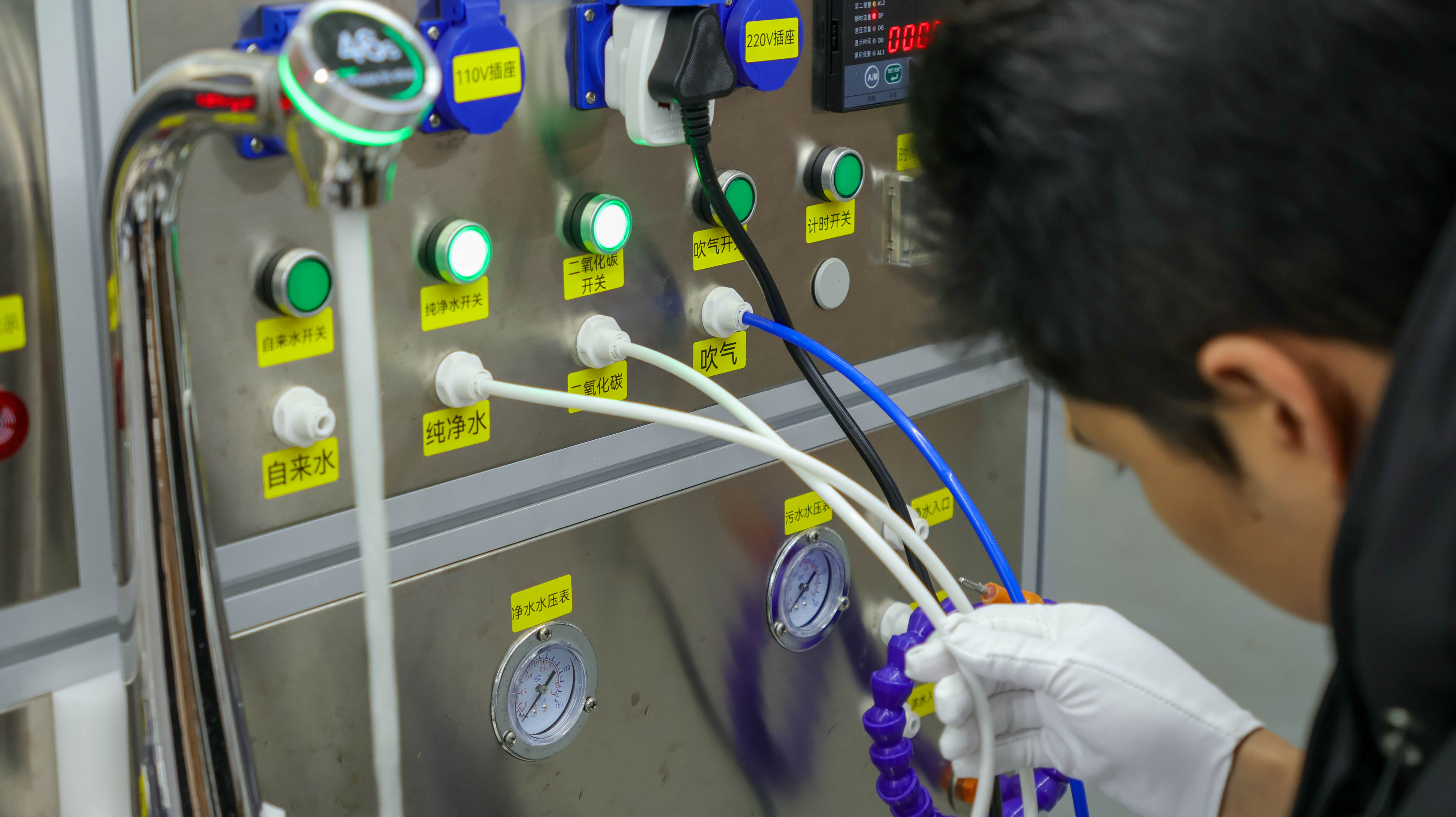

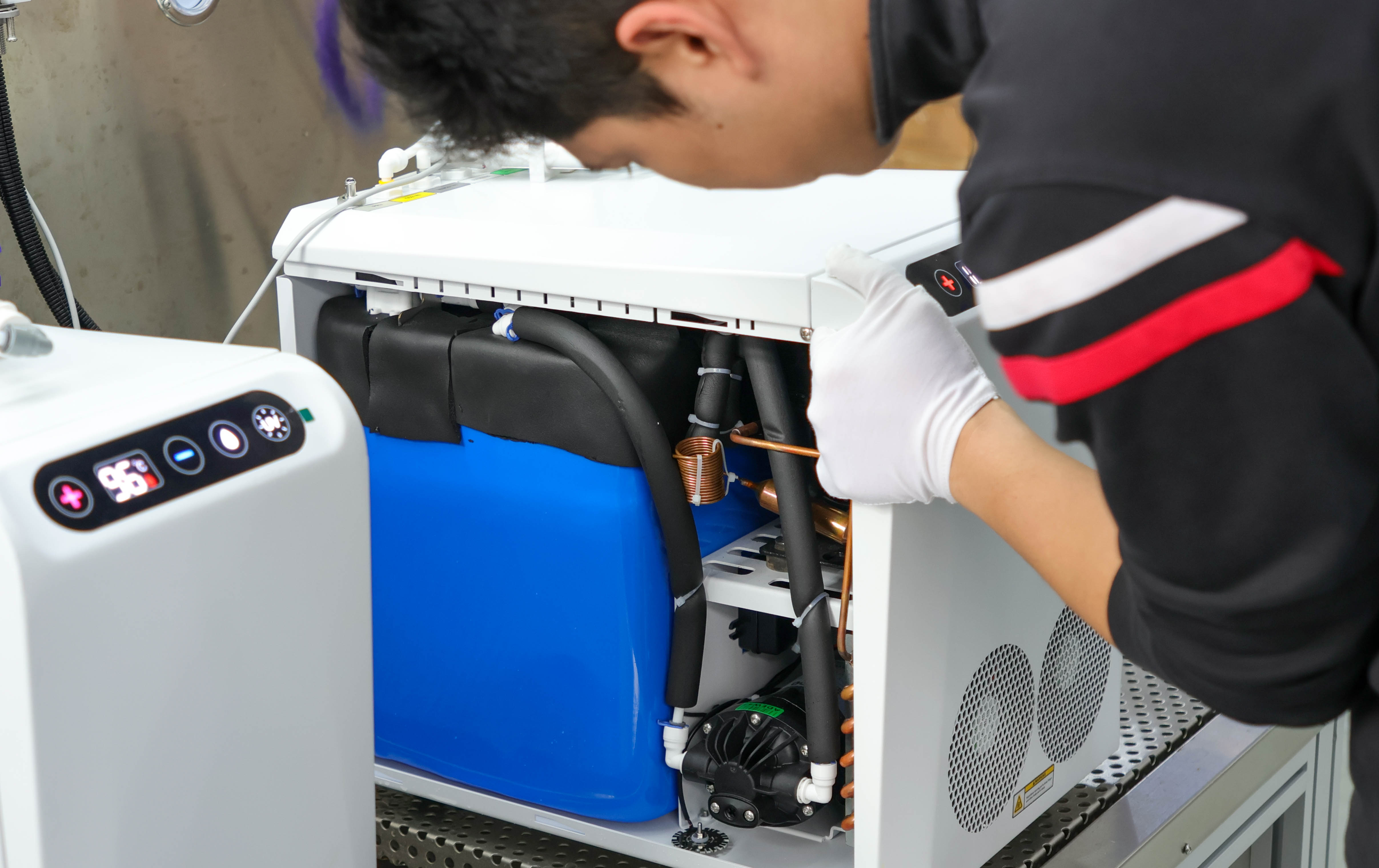

Chill water circuit leak check
Hot water circuit leak check

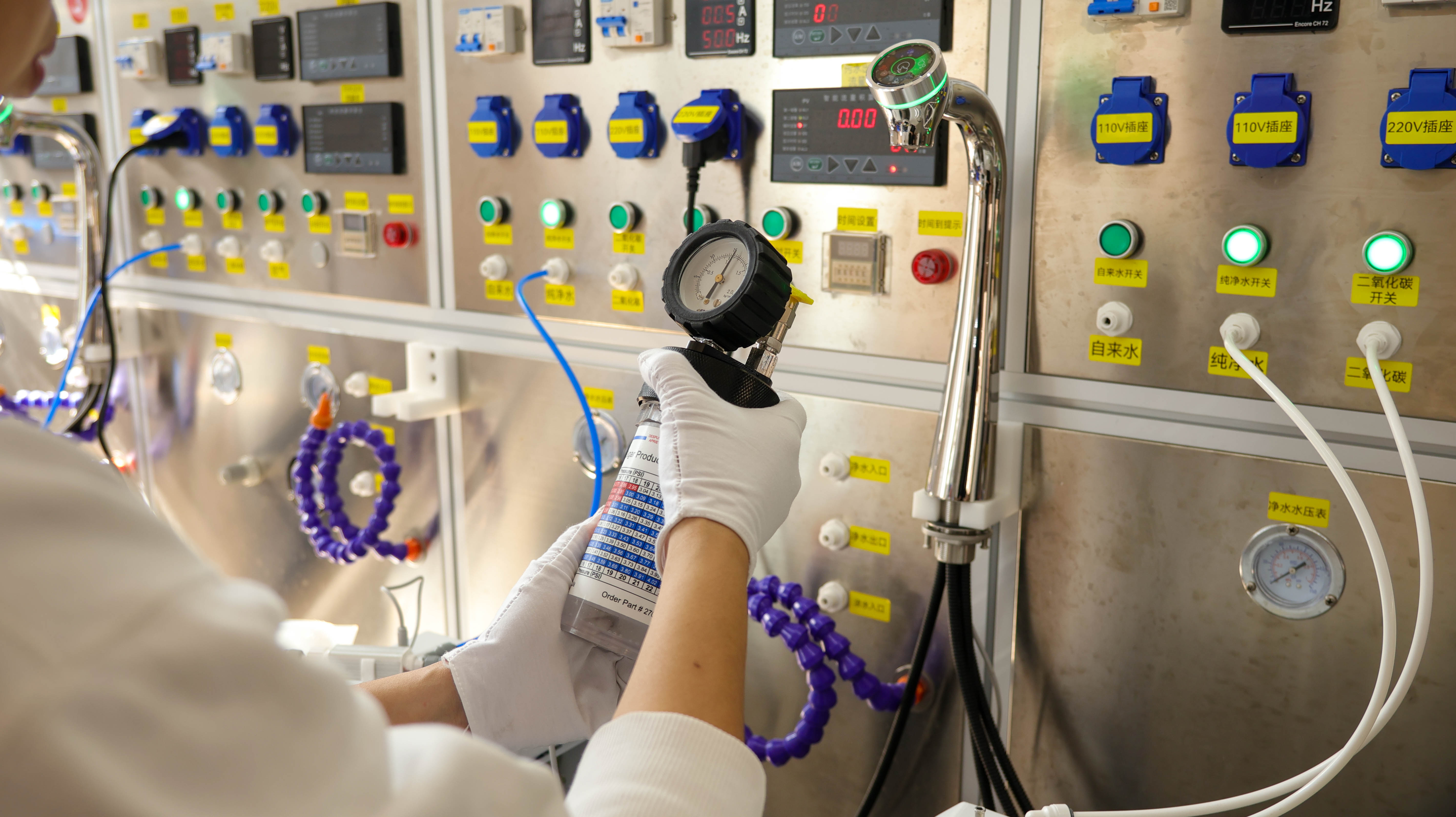

CO₂ tube leak check

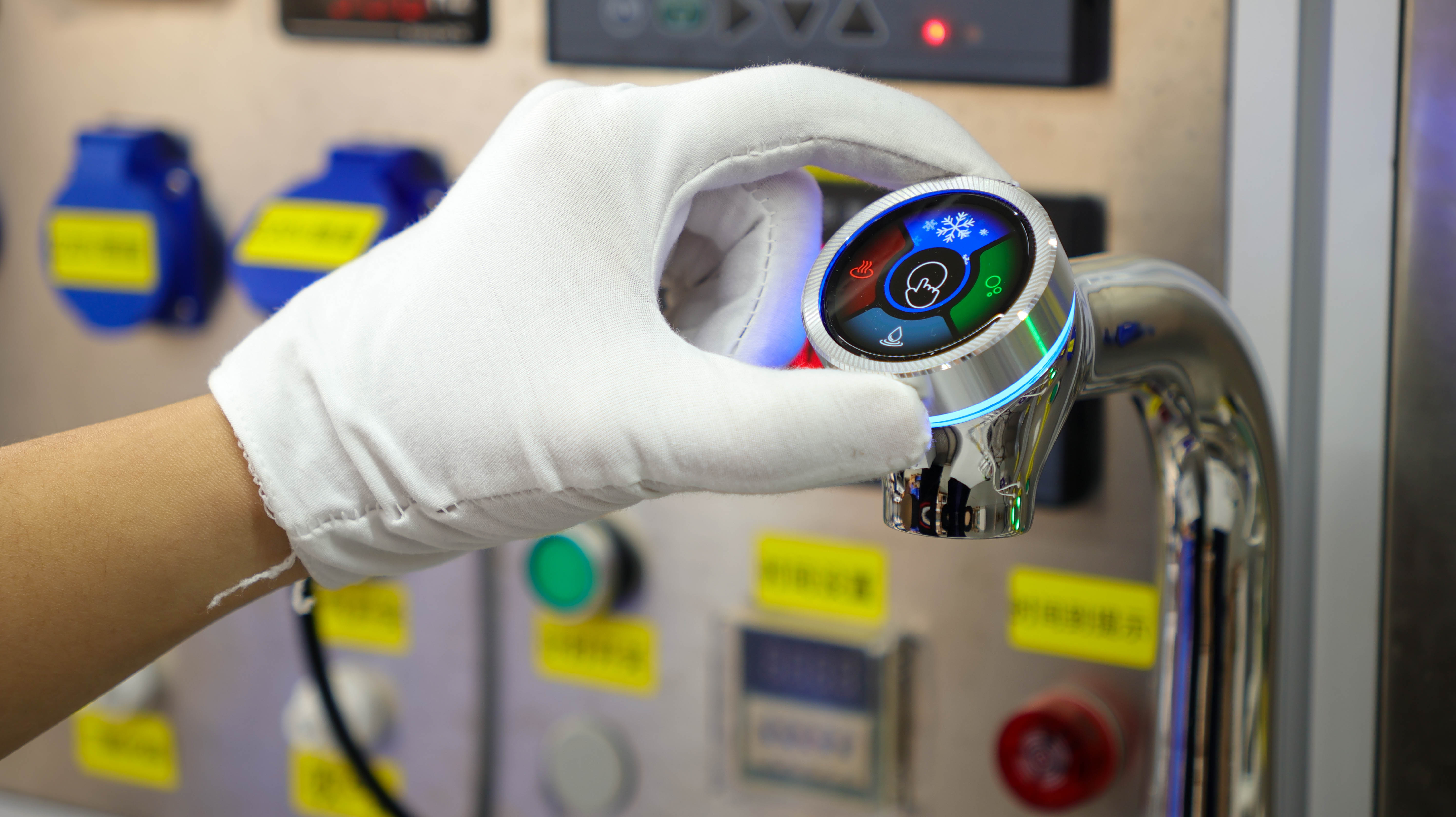

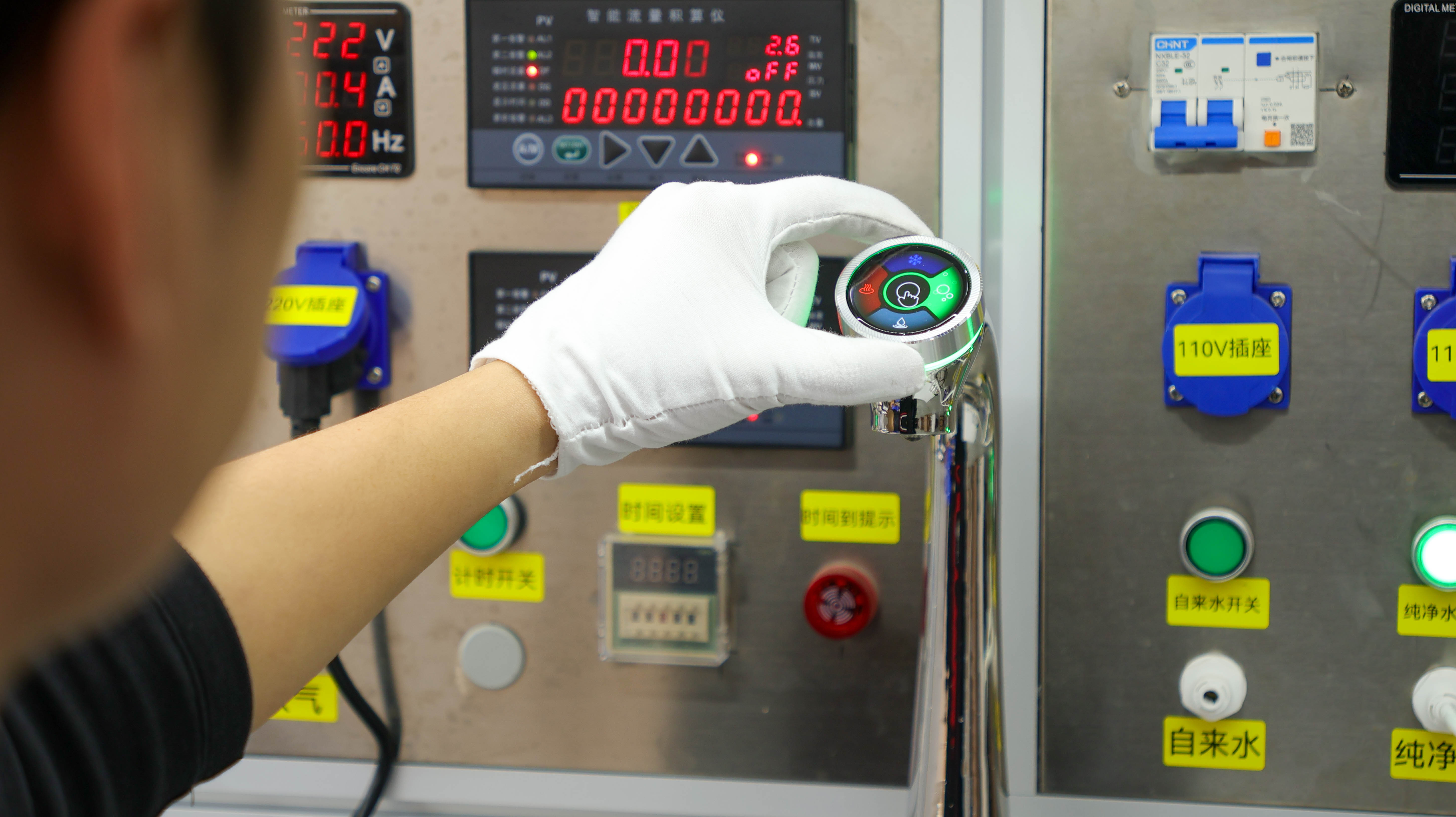

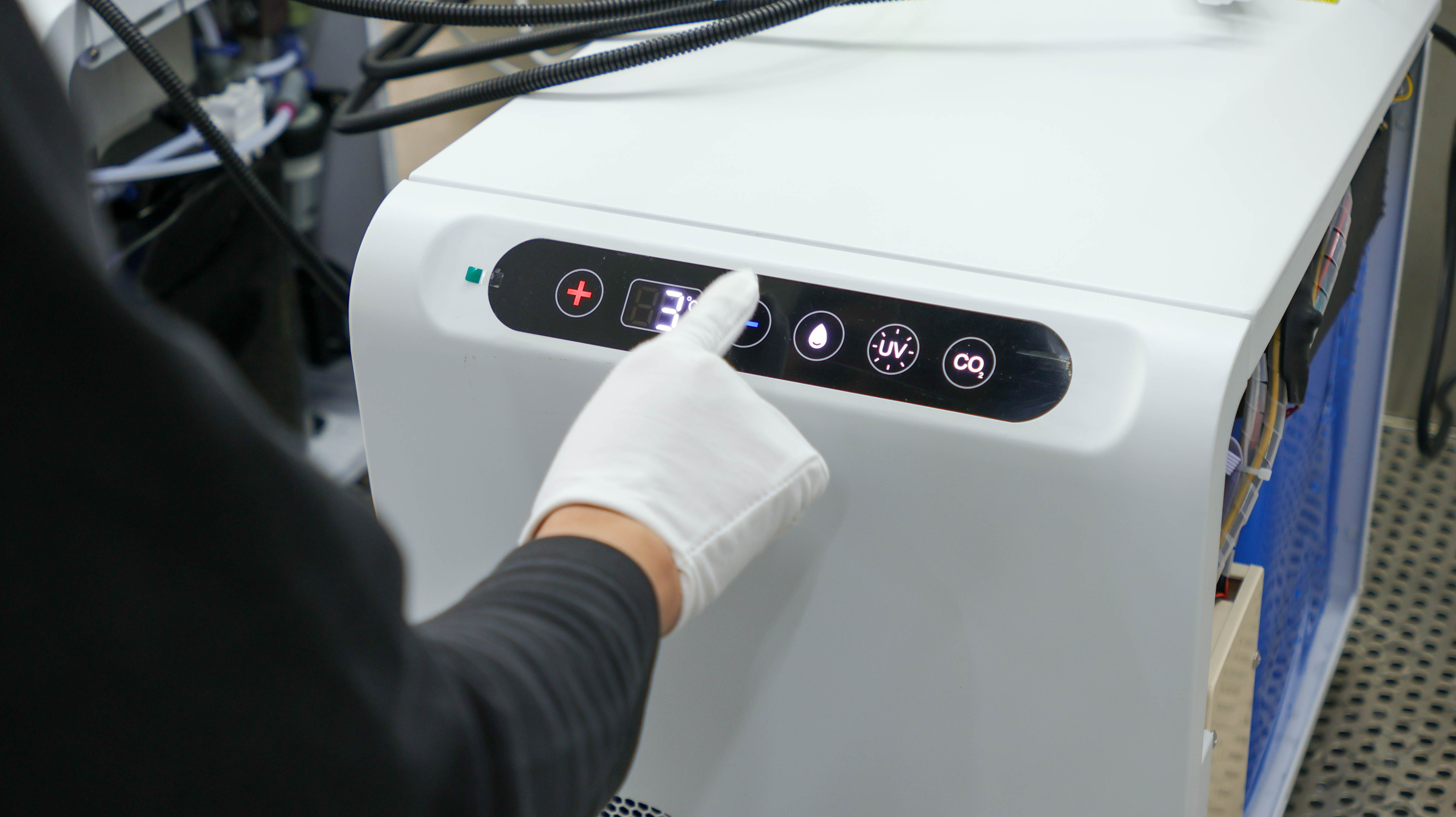

Display shows correctly, water mode switch operates normally

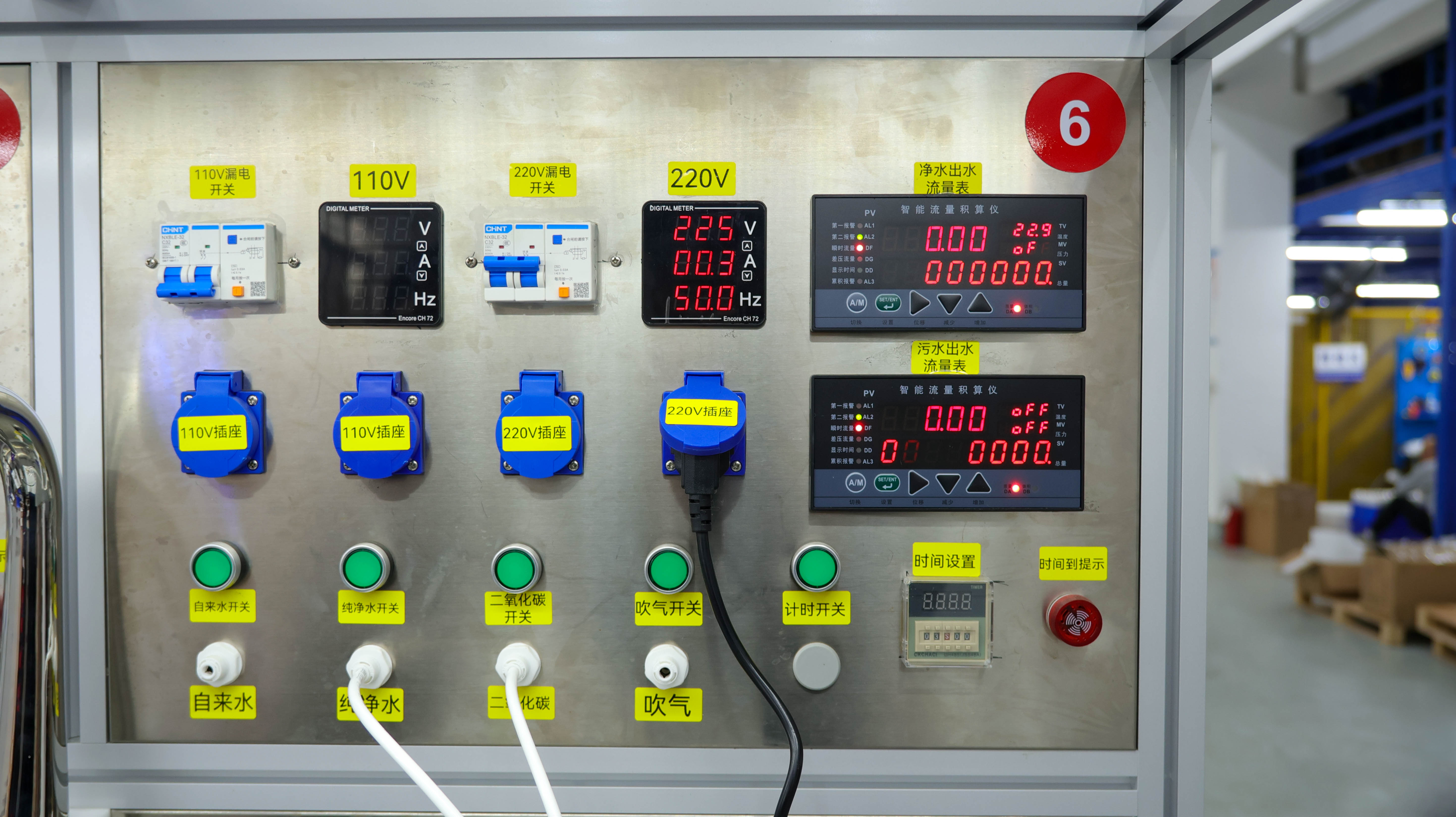

Power stabilization
Hot water on/off functions operate normally

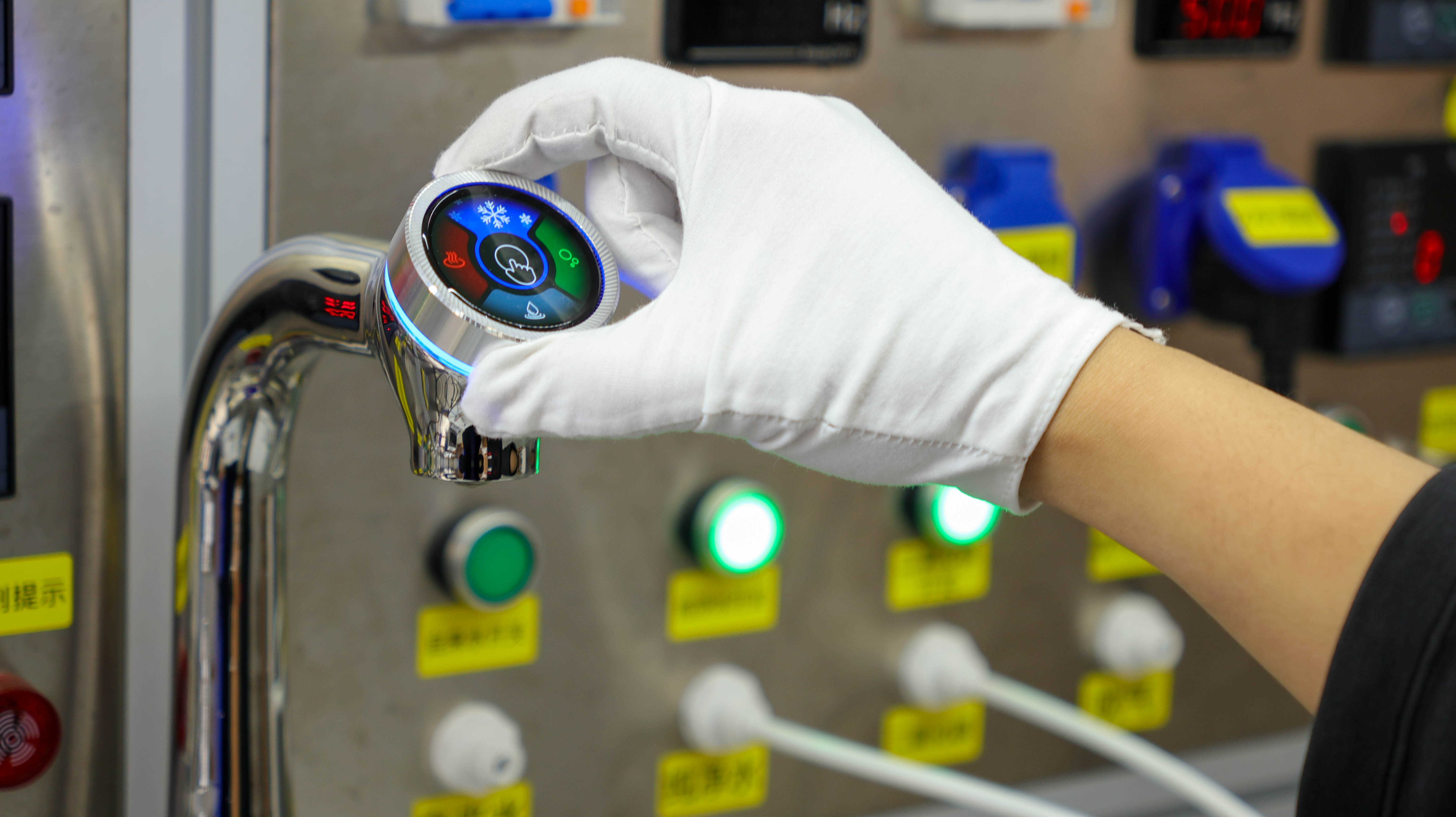

Chill / Hot / Sparkling / Ambient water mode switching operates normally

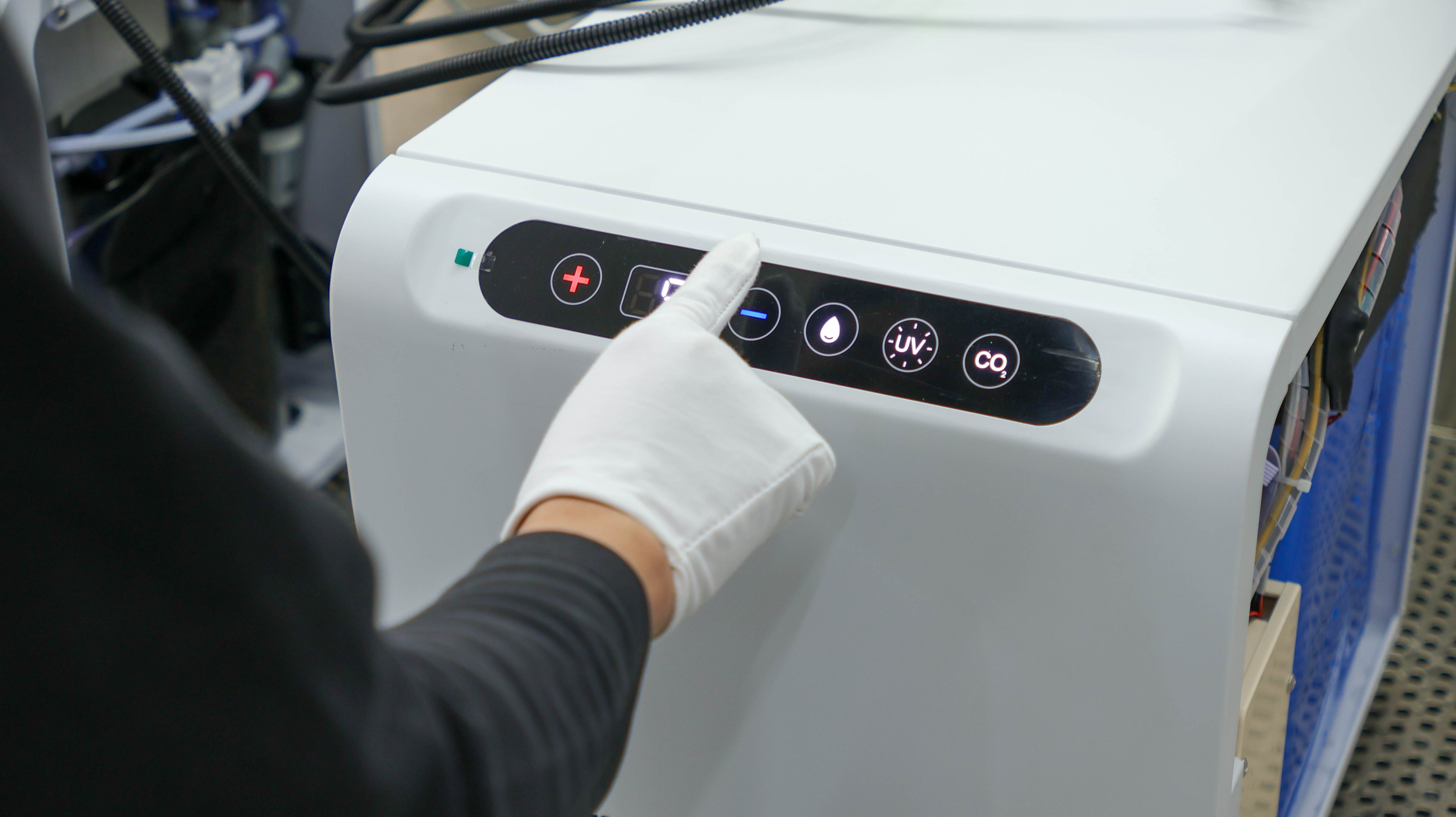

Buttons function normally
Error and fault alarms function normally

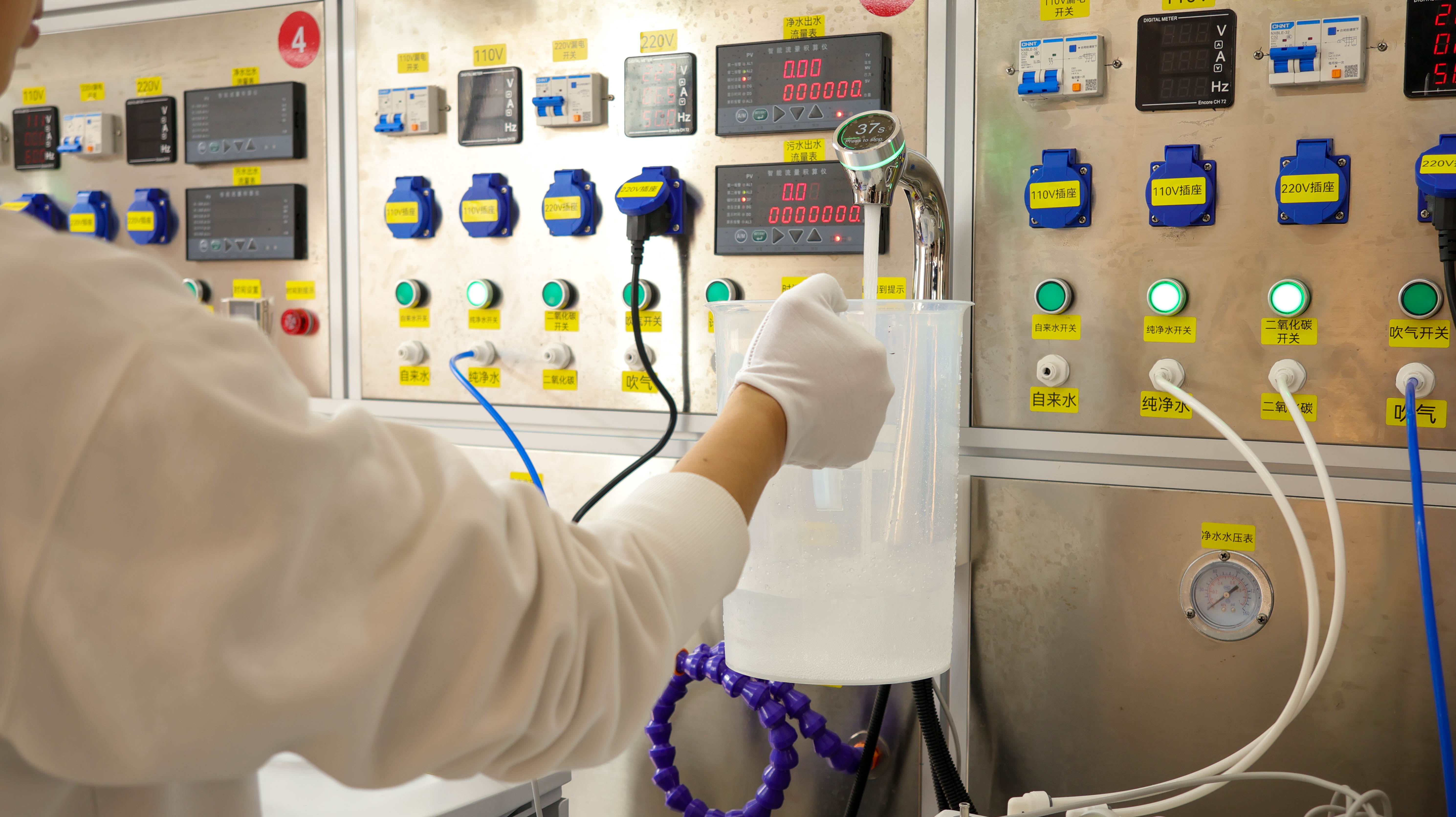

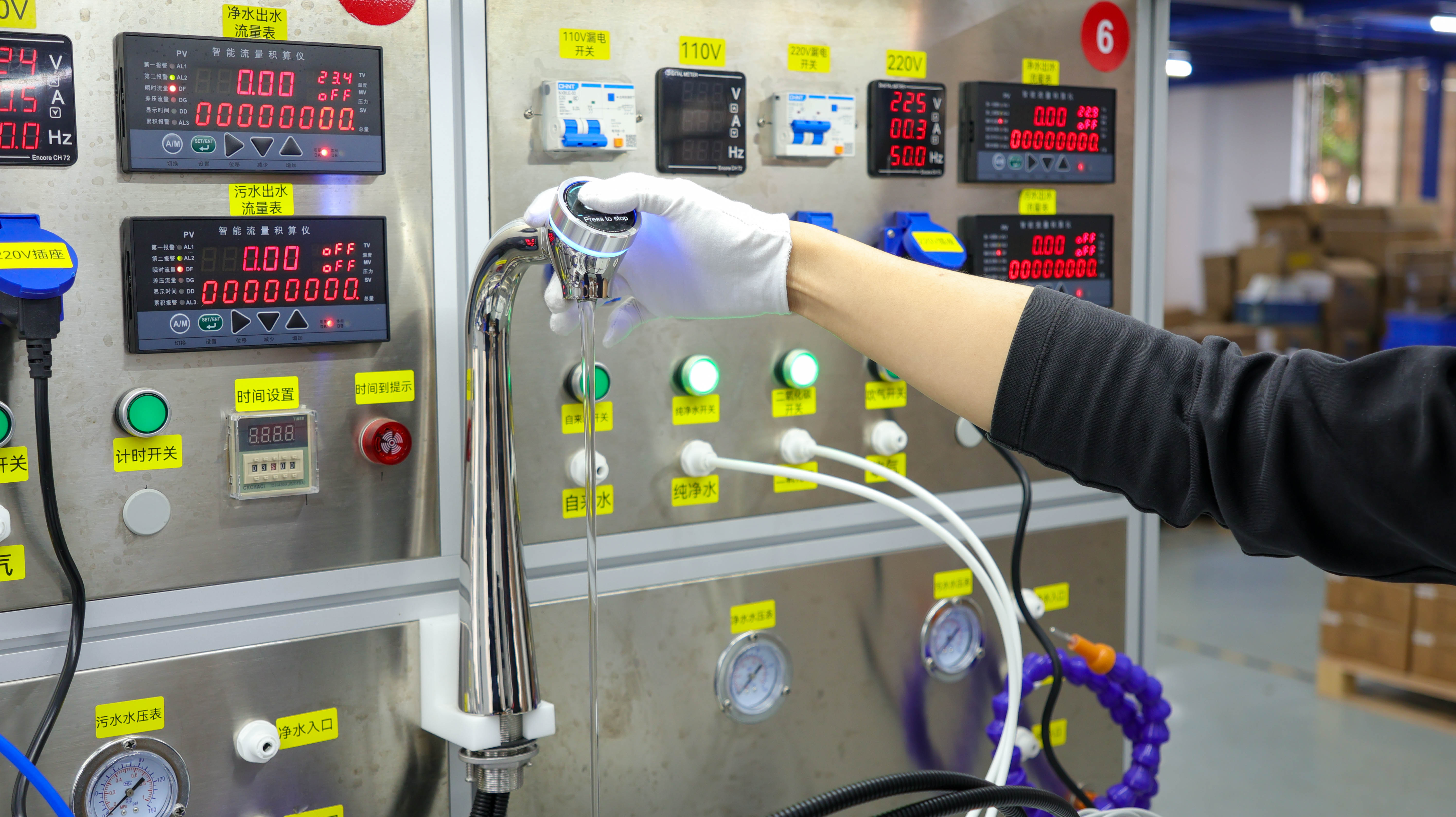

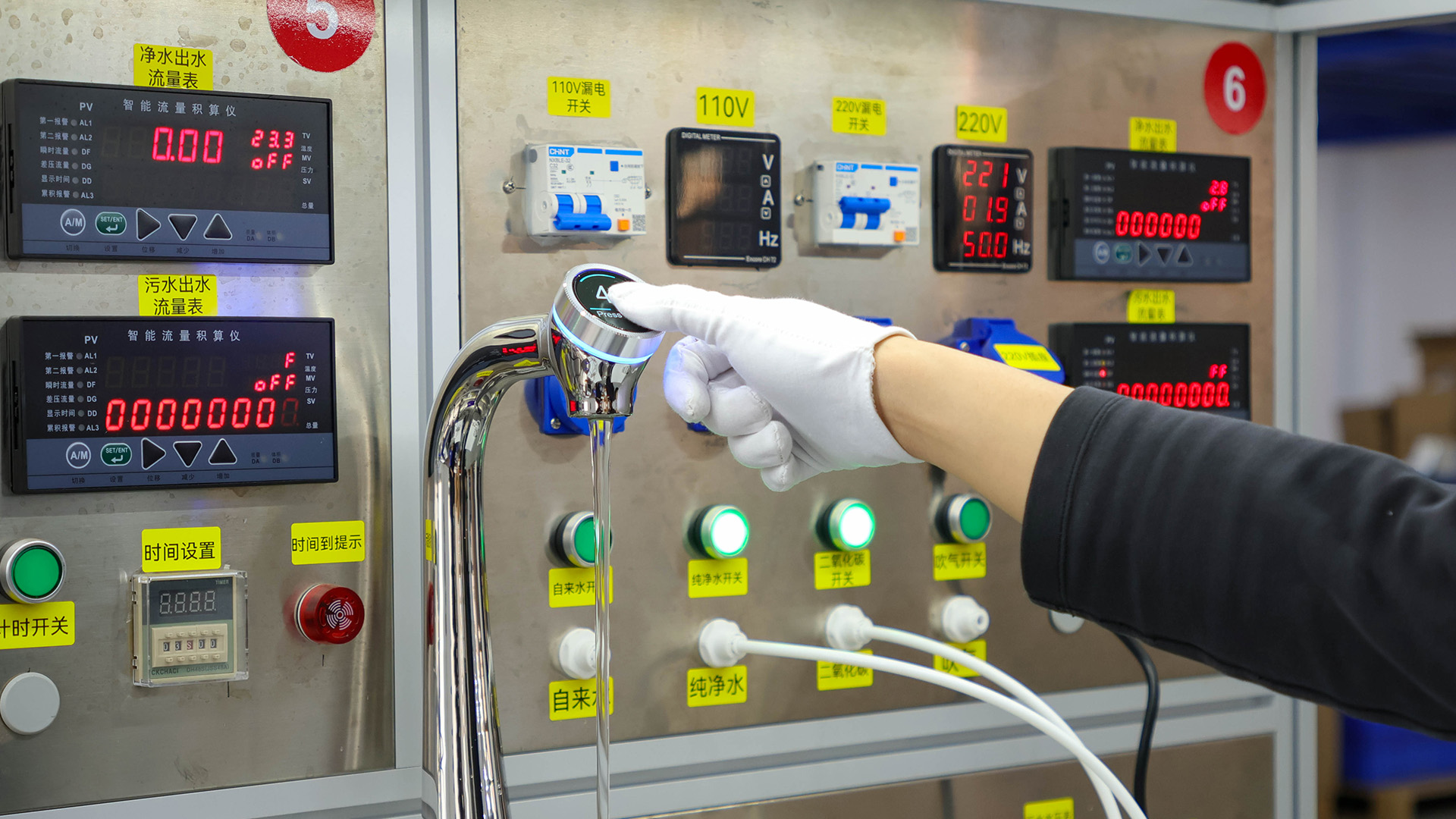

Temperature and water flow test
Carbonation level (CO₂) test
.jpg)

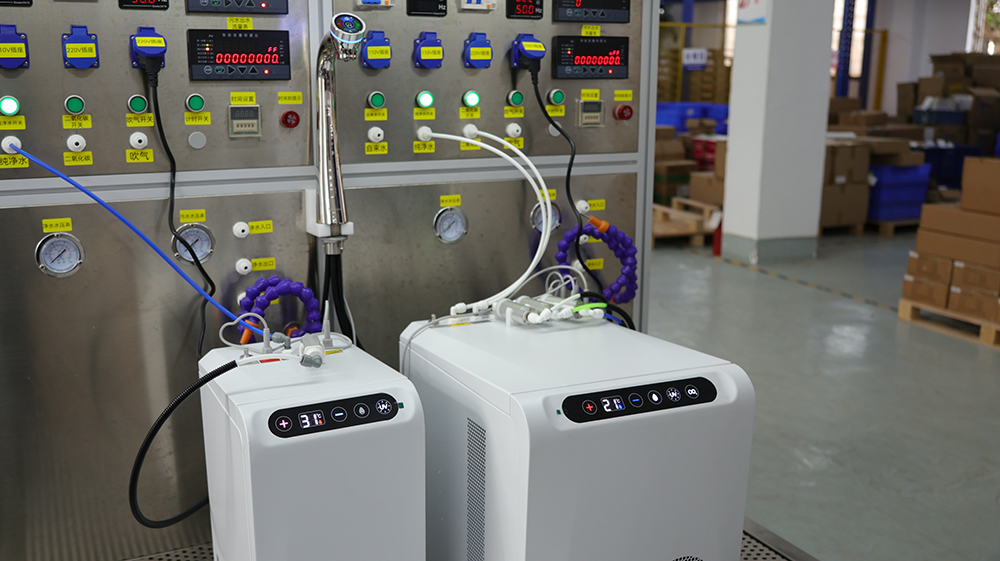

Full-system endurance test
| Error Code | Error Name | Symptoms | Possible Causes | Solution | Image |
|---|---|---|---|---|---|
| E0 | Water Leakage Protection | All loads shut down, water dispensing disabled (E0 has the highest priority) | Loose internal piping in chilling unit causing leakage | Remove side panel to check and re-secure any loose pipes | / |
| Water accumulation in leakage protector | Remove left side panel to clean accumulated water in leakage protector | .jpg) | |||
| Water tank leakage | Contact after-sales service | / | |||
| E1 | Temperature Sensor Fault | Chilling disabled; dispensing and other functions normal | Damaged or faulty temperature sensor | Contact after-sales service | / |

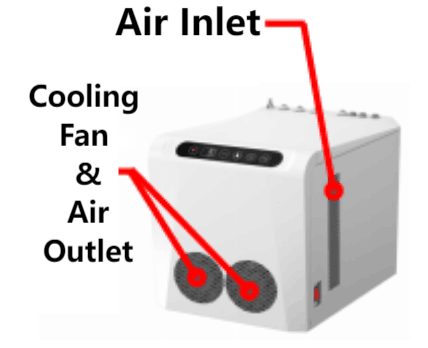

| E3 | Cooling Fault | Water temperature unchanged after 20 minutes or large deviation from set temperature | Foreign object blocking both air inlets of the unit | Remove any foreign objects blocking both air inlets | .png) |
| Cooling fan failure or abnormal(stopping after cooling is normal) | Contact after-sales service | ||||
| Not enough space for hot air to escape | Place the unit in a well-ventilated area with good airflow | ||||
| / | No Error Code, Cooling Fault | Water temperature unchanged after 20 minutes or large deviation from set temperature | Not enough space for hot air to escape | Place the unit in a well-ventilated area with good airflow | / |
| E4 | Bubble Tank Refill Error | Bubble tank not refilled within 15 minutes | No water supply to bubble tank | Check if water supply is normal | / |
| Excessive CO₂ pressure | Maintain CO₂ pressure below 0.5MPa | ||||
| E7 | Chilling Tank Refill Error | Chilling tank not refilled within 20 minutes | No water supply to chilling tank | Check if water supply is normal | / |
| / | Sparkling Water Dispensing Error | Dispensing fluctuation | CO₂ pressure too high | Set CO₂ 0.35-0.4 MPa, dispense 30 s to relieve pressure | / |
| CO₂ pressure too high | Faulty CO₂ gauge may misread. Reduce pressure until smooth | ||||
| No bubbles in sparkling water | Insufficient CO₂ in water | CO₂ ≤ 0.1 MPa. Replace cylinder | |||
| Insufficient CO₂ in water | Follow Initial Sparkling Water Commissioning instructions |
| Error Code | Error Name | Symptoms | Possible Causes | Solution | Image |
|---|---|---|---|---|---|
| E0 | Water Leakage Protection | All loads shut down, water dispensing disabled (E0 has the highest priority) | Loose internal piping in heating unit causing leakage | Remove side panel to check and re-secure any loose pipes | / |
| Water accumulation in leakage protector | Remove right side panel to clean accumulated water in leakage protector | .jpg) | |||
| Water tank leakage | Contact after-sales service | / | |||
| E1 | Temperature Sensor Fault | Heating disabled; dispensing and other functions normal | Damaged or faulty temperature sensor | Contact after-sales service | / |
| E7 | Heating Tank Refill Error | Heating tank not refilled within 20 minutes | No water supply to heating tank | Check if water supply is normal | / |
